Screen Printed Electrodes (SPE) Flow Cell

Name: Screen Printed Electrodes (SPE) Flow Cell
SKU: 294
Price: 170.00 USD
Availability: InStock

USD 170.00

We CNC-machine SPE flow cells for screen-printed electrodes in-house. We are able to manufacture the flow cells from a variety of materials to meet diverse application needs (chemical resistance, transparency, mechanical strength). We can accommodate custom designs.

Typical materials: HDPE, PEEK, PMMA (Acrylic), Polycarbonate, and more.

We usually CNC-machine the flow cells from acrylic with connections to accommodate standard 1/4-28 fittings.

As an example, you can use:

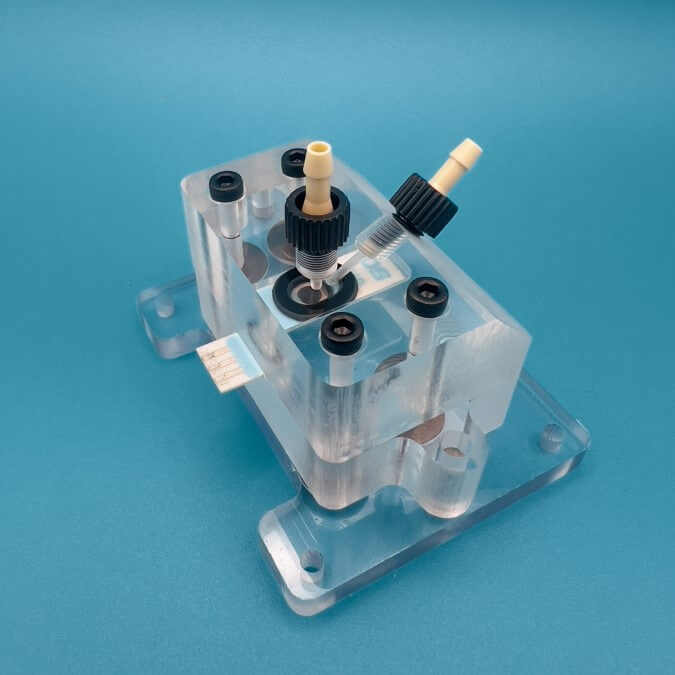

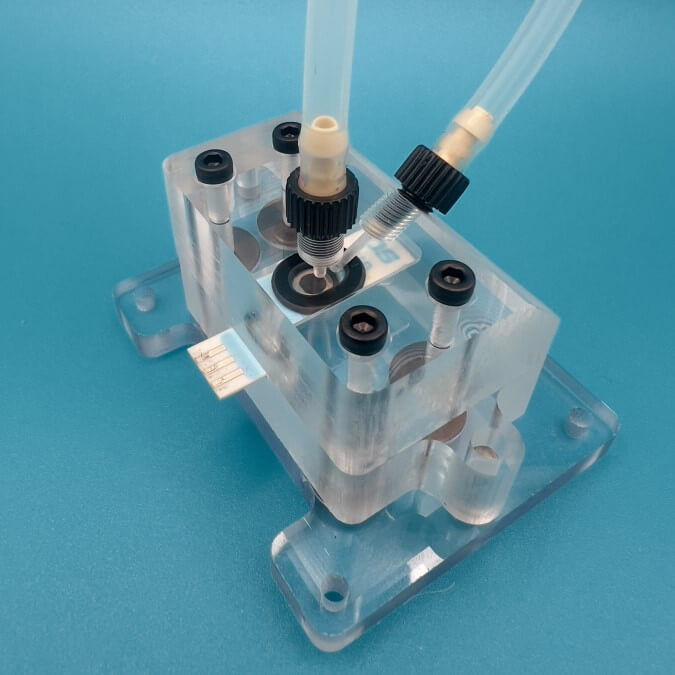

A – PPS antitwist barb to 1/4-28 male fitting to connect to peristaltic pump tubing (3 mm or 1/8) – see images in gallery

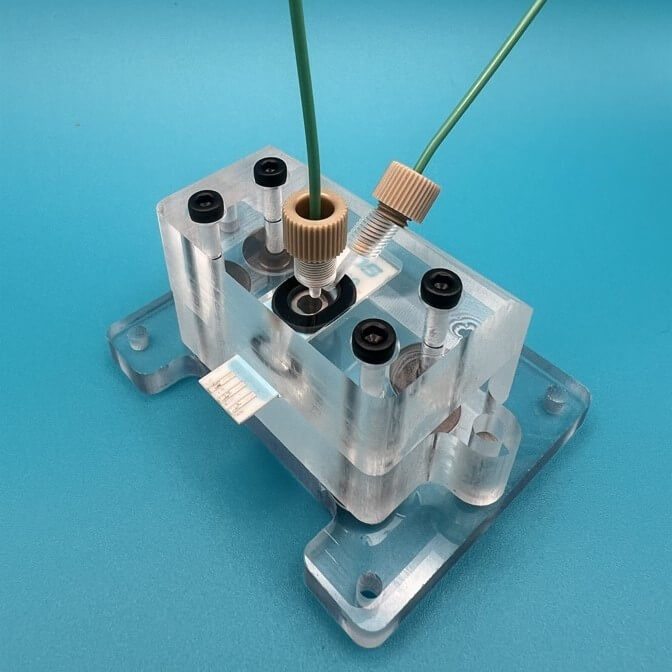

B – standard flangeless 1/4-28 fittings to connect to any type of tubing tubing with 1/16 or 1/8 OD – see example in gallery connecting to 1/16 HPLC tubing using flangeless PEEK 1/4-28 fittings.

Our flow cells can be made to match any type of screen printed electrode, such as BVT, ItalSens, CTI, MicruX, BST, Gii-Sens, Zimmer & Peacock, Zensor, Metrohm.

We can make custom design modifications to meet your application needs.

Our SPE flow cells have modular design to accommodate use of inserts – these can have a variety of functions:

1. surface modification to meet your application needs.

For example, if you wish to use PEEK flow cell, there is no need to spend hundreds of dollars on machining flow cell from expensive PEEK, instead, an insert from a thin PEEK sheet can be used.

Glass inserts offer improved scratch and chemical resistance.

2. Inserts can be coated with specific chemical indicators, catalysts.

3. Inserts can have form of a microfluidic chip.

More information included below.

Add-ons

Additional accessories you can purchase with your SPE flow cell.

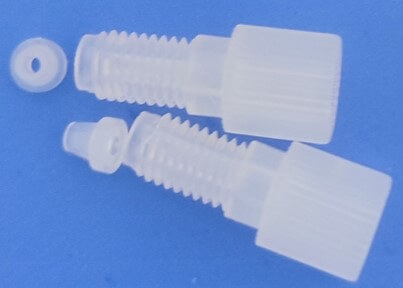

2 x Polypropylene flangeless 1/4-28 fittings with 1/16 ID

FREE - Included with SPE flow cell

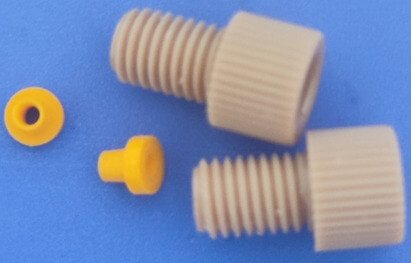

2 x PEEK flangeless 1/4-28 fittings with 1/16 ID (+$16.00)

Suitable for connecting 1/16 OD tubing

2 x PPS antitwist barb to 1/4-28 male fittings (+$20.00)

Suitable for connecting peristaltic tubing with ID 2.4 – 3.2 mm

SPE Flow Cell Holder (+$30.00)

Holder with 4 M3 holes and quick attachment

SPE Inserts

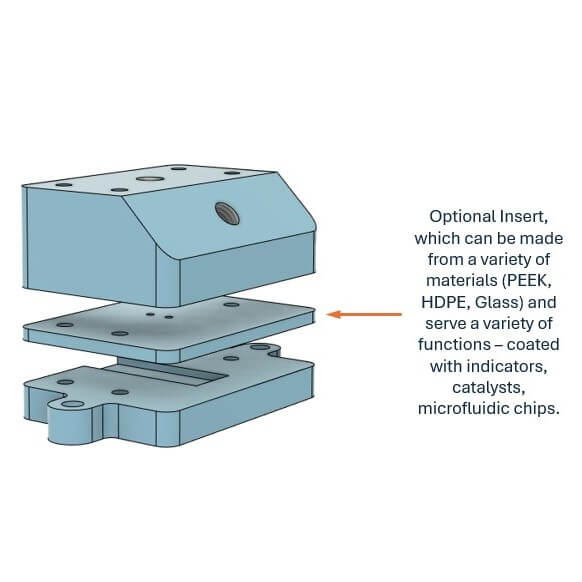

Our flow cell modular design allows for inserts mounted between the flow cell well (O-ring) and the top section of the flow cell. These allow for modification of the surface to better suit your needs. For instance PEEK insert allows turning the flow cell into PEEK-based SPE flow cell. Glass insert is inert and scratch-proof. You can coat the inserts with indicators, catalysts, substances to better yield or study the reactions in the flow cell. We can help design and manufacture micro-fluidic inserts.

Without Insert

HDPE Insert (+$60.00)

PEEK Insert (+$90.00)

Glass Insert (+$130.00)

Custom Design

We can custom-design and in-house manufacture flow cells to your specific needs.

Yes, I need custom flow cell design (+$200.00)

Price displayed in USD. Final charge will be in CAD.

Category: Flow Cells

Typical Material: Acrylic/PMMA

Typical SPE flow cell dimmensions without holder: 50 mm (L) x 36 mm (W) x 25 mm (H)

Included:

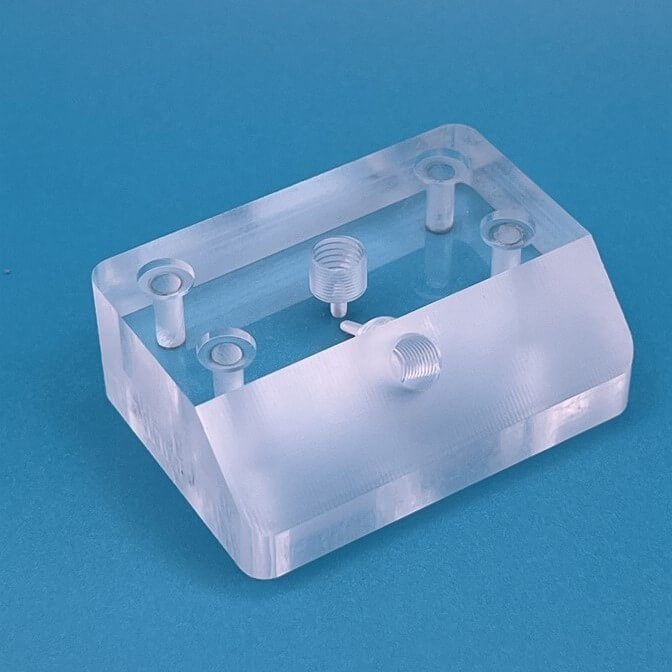

SPE flow cell top section with 2 threaded holes (1/4-28 thread)

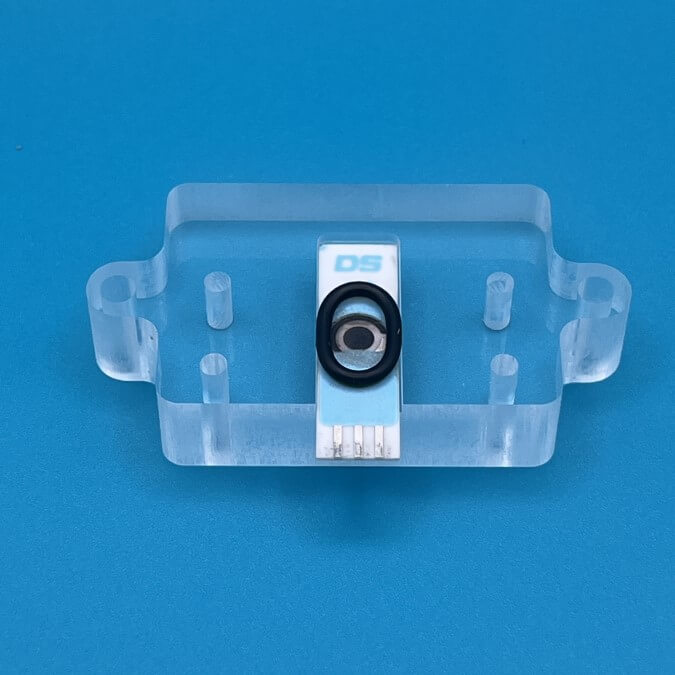

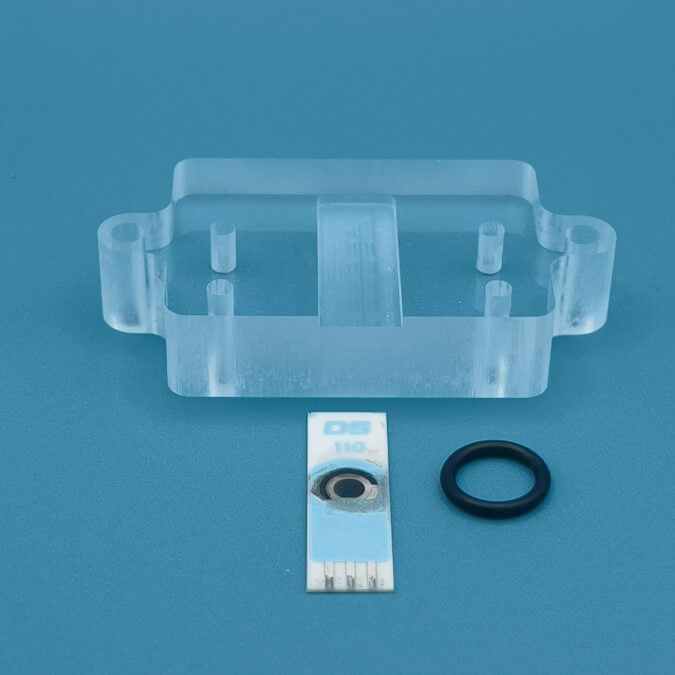

SPE flow bottom section with notch for SPE electrode – customizable to meet your needs and dimmensions
2 x polypropylene flangeless fittings 1/4-28 and 1/16 ID
4 x M3 screws
1 x O-ring – 8 mm ID x 12 mm OD x 2 mm W
1 x O-ring – 10 mm ID x 14 mm OD x 2 mm W

Holder is not included and is sold separately.

Inserts are not included and are sold separately.

The flow cell comes with standard PPE flangeless 1/4-28 with 1/16 ID fittings.
